Anti-Decubitus Alternating Pressure Strip Mattress with Pump – 3-Cycle Mode
This is a medical-grade alternating pressure mattress system designed for extended bed use. The 3-cycle mode continuously rotates support points across 18 transversal air chambers, distributing body weight more evenly than standard 2-cycle systems to help protect skin integrity during prolonged periods of bed rest.
The system operates using an A/B/C chamber group rotation — inflating 12 of 18 chambers per cycle compared to just 9 in a standard A/B mattress. For an 80 kg user, this reduces pressure per chamber from 8.9 kg to 6.7 kg, making it a more effective option for long-term skin care management.
Key Features

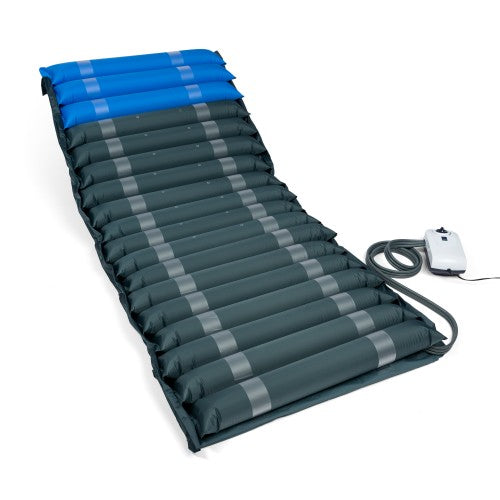

- 3-cycle alternating pressure system — A/B/C chamber groups, 6 chambers per group, 12 active per cycle
- Laser-generated micro-ventilation — 0.2 mm micro-openings promote airflow, reduce moisture build-up, and help maintain skin condition

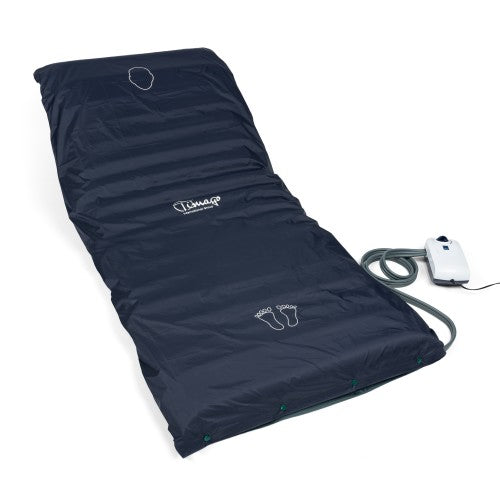

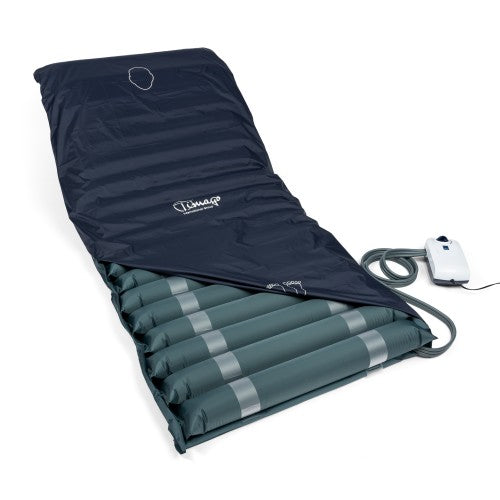

- Vapour-permeable cover included — protects the mattress surface and aids moisture management, particularly for users with higher perspiration levels
- Durable PVC with nylon construction — non-toxic, hypoallergenic strip-tube chamber structure

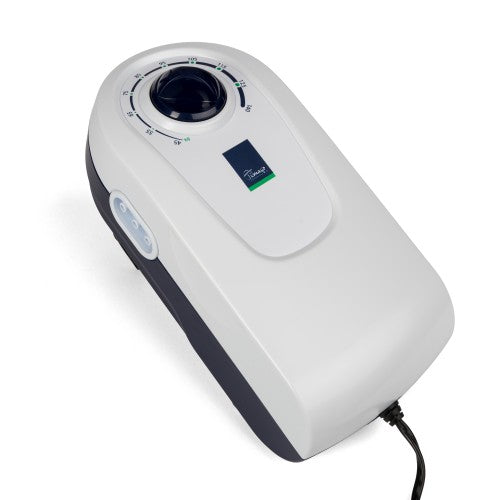

- Soft Wind V pump — quiet operation at 37 dB with a pressure range of 50–110 mmHg and 7 L/min airflow
- Supports up to 150 kg — adjustable pressure dial to match user weight
- Spare chamber included — for added peace of mind and continuity of use
What's in the Box
Alternating pressure strip mattress · Soft Wind V air pump · Vapour-permeable mattress cover · Spare air chamber · Air hoses
Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions | 200 × 90 × 11 cm |
| Mattress Weight | 4.5 kg |
| Pump Weight | 1.5 kg |
| Maximum Capacity | 150 kg |
| Cycle Duration | 12 minutes |
| Pressure Range | 50–110 mmHg |
| Airflow | 7 L/min |
| Noise Level | 37 dB |
| Power Supply | AC 220V 50/60 Hz, 0.1A |
| Power Intake | 12 VA |
| Operating Temperature | +10°C to +40°C |
| Operating Humidity | 10%–90% |
Usage Notes
This mattress system is for use under medical supervision. Pressure settings should be determined in consultation with a healthcare professional based on the user's weight and condition. The mattress requires a 24-minute inflation period (two full cycles) before first use. The pump must remain switched on during use as it continuously alternates airflow between chamber groups. The mattress is CE marked and classified as a medical device (MD).
